Description

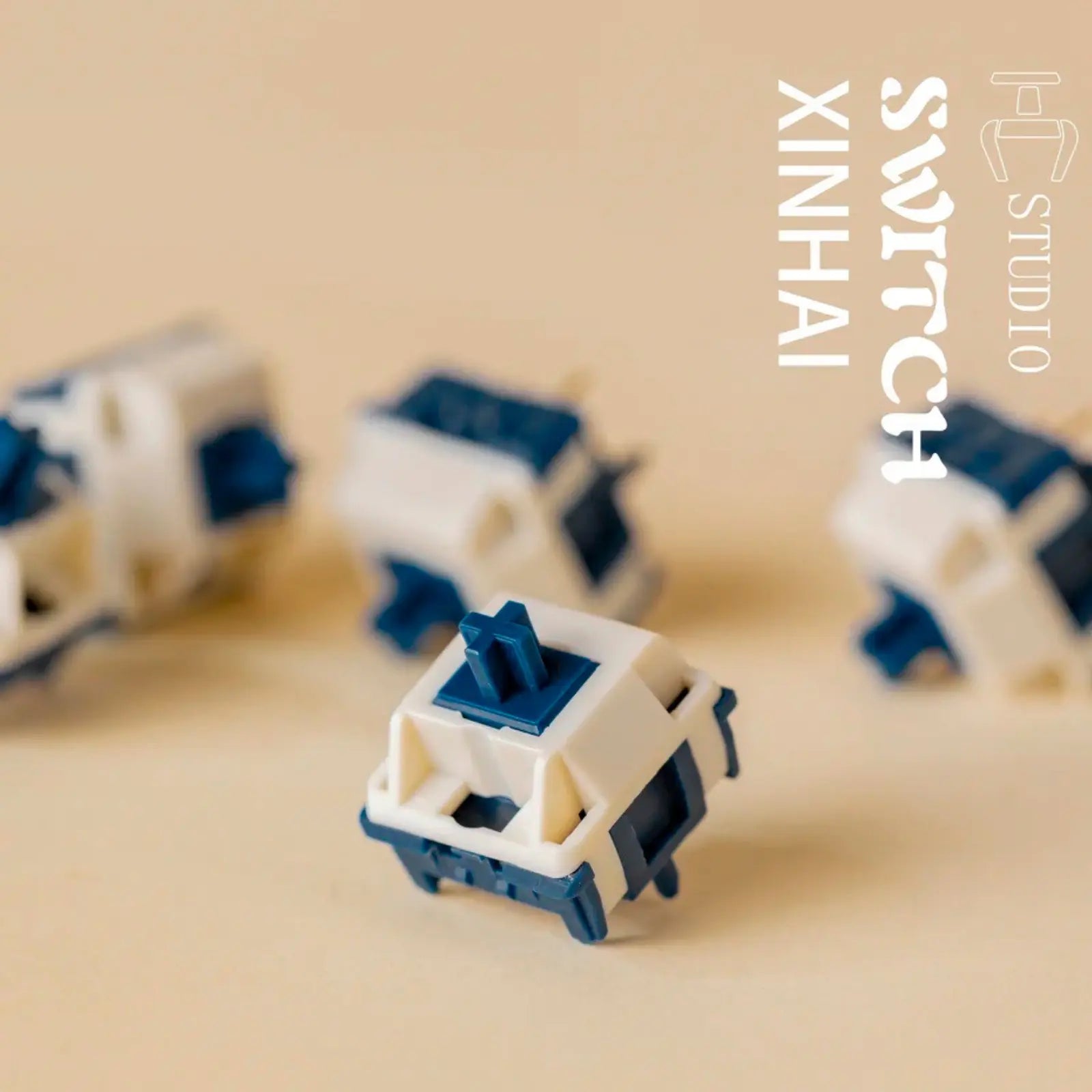

The Xinhai switch distinguishes itself from other HMX switches in several notable ways. Firstly, its top housing is constructed from a softer material, PA12, as opposed to the more common PA66 or PA2. This design choice results in a less sharp and less pronounced top-out sound. Additionally, the bottom housing is composed of a modified Nylon material, a standard choice among HMX switches. Notably, the housing materials used in the Xinhai are identical to those in the HMX Macchiato; the key distinction between the two switches lies in their stem material. The Macchiato features a POK stem, lending it a pronounced 'thocky' sound in the mid-range, whereas the Xinhai employs a POM stem, producing a crisper, higher-pitched bottom-out sound.
Specifications
-
Switch type: Linear
-
Actuation: 37g
-
Bottom-out: 45g
-
Pre-travel: 2mm
-
Total travel: 3.4mm
-
Factory lubed: Yes
-
Mount type: PCB (5-Pin)
-
Top housing: PA12
-
Bottom housing: Modified Nylon
-
Stem: POM
-
Spring: 22mm Single Stage
- Manufacturer: HMX
